Product description

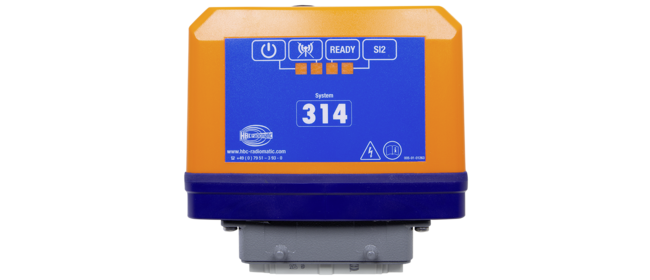

FSE 314 offers customized radio technology for industrial cranes with up to 3 two-step drives and pre-selection of trolley / hoist. The plug & play radio receiver can be mounted directly without any wiring effort. This saves time and reduces cost. With an UL/CSA 61010-1 and UL/CSA certification 61010-2-201, the FSE 314 is ideally suitable for the North American market.
- Basic equipment
- Safety
- Frequency management
- merlin® technology
- Dimensions & specifications
Output elements
Control functions
Indication
E-STOP
PL d category 3 according to EN ISO 13849-1:2015
Pre-selection of trolley / hoist
Efficiency and safety for cranes with 2 trolleys.
Adaptive Frequency Hopping
= fully automatic
merlin®
Efficient, flexible, easy to service
Housing material / protection class:
PC-ABS UL94 V-0
Operating temperature range:
-25 °C … +70 °C
(-13 °F … +158 °F)
Weight:
680 g (1.5 lb.)
Dimensions:
152 x 147 x 66 mm
(6.0" x 5.8" x 2.6")
Power supply:
24 – 48 V AC, 100 – 240 V AC
Connection:
Harting Han® 16B; Harting Han® 24B; direct mounting
Installation:
direct mounting
