Product description
The ergonomic control for cranes and machines with up to 6 stepless drives. High-quality HBC linear levers for exceptionally smooth control.
- Operation
- Safety
- Frequency management
- Frequency ranges
- Dimensions & specifications
- Service concept
- HBC features
- Enhanced safety functions
- Performance & availability
- Feedback to the operator

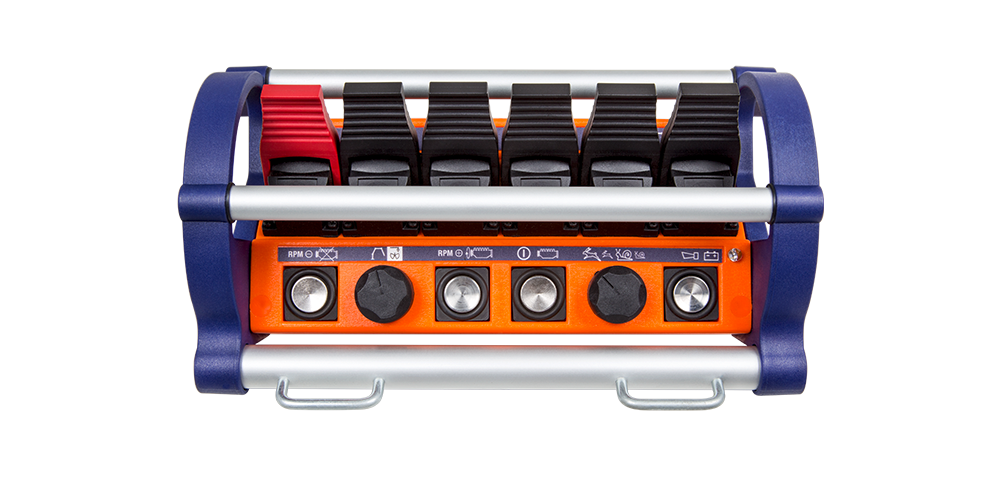

Operating elements & control functions

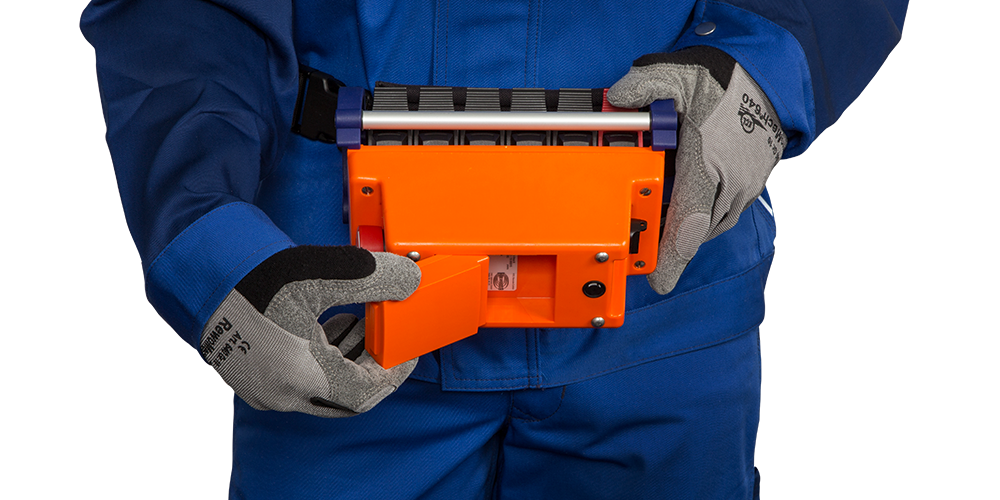

Battery technology
Indication
Protection from unauthorized use
Activation via HBC start sequence.
E-STOP
PL d category 3 according to EN ISO 13849-1:2015
Auto Power Off
Automatic deactivation of the transmitter after preset time without command input
(standard: 15 min)
Auto Movement Off
Automatic deactivation of movement functions after 5 min without command input.
radiomatic® AFS
= partially automatic
Adaptive Frequency Hopping
= fully automatic
DECT
= fully automatic
country-independent use:
2402 - 2480 MHz
country-specific use:
1790 - 1930 MHz
country-specific use:
405 - 475 MHz
865 - 870 MHz
902 - 928 MHz
Housing material / protection class:
Plastic housing,
Protection class IP 65
Operating temperature range:
-25 °C … +70 °C
(-13 °F … +158 °F)
Weight:
approx. 1.5 kg (3.3 lb.)

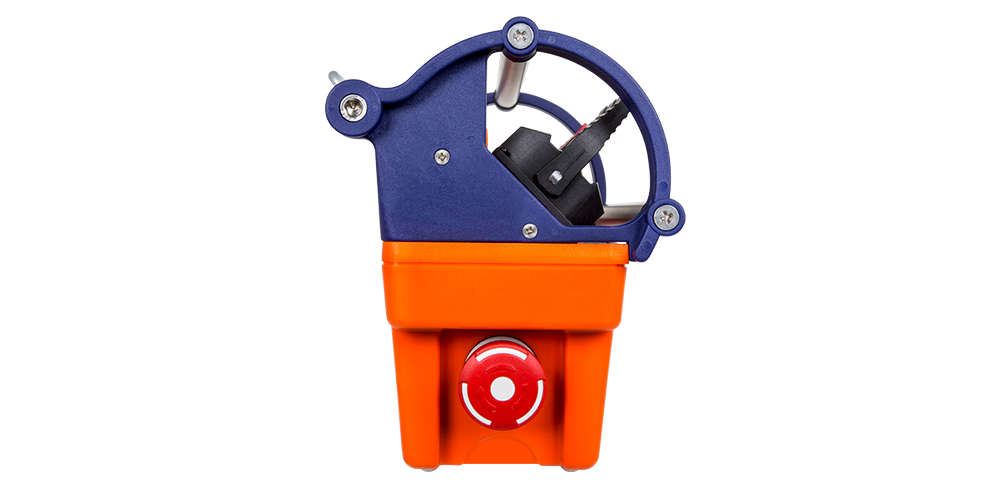

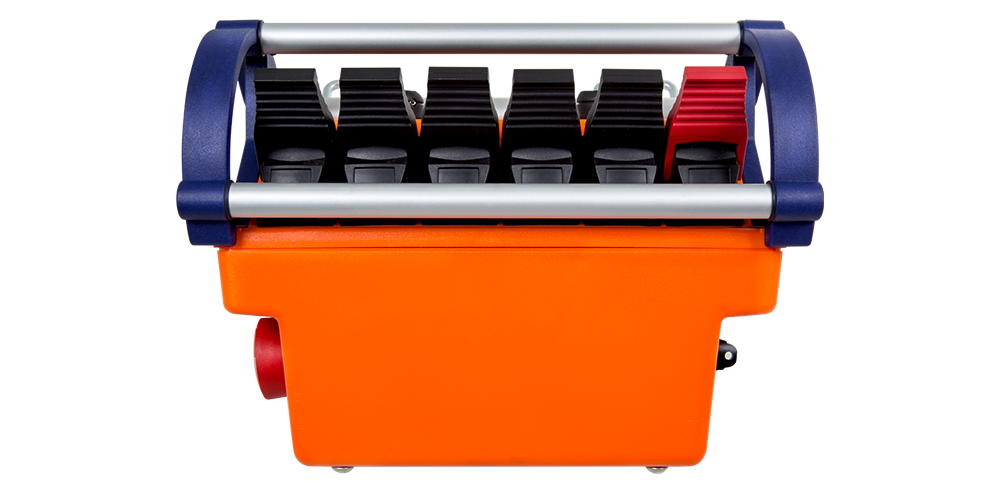

Dimensions:
218 x 126 x 167 mm
(8.6 x 5.0 x 6.6 ")
radiomatic® iLOG
Service without downtime
Enhanced safety functions
Performance & availability
Feedback to the operator
Typical applications
