Product description
The radio control with linear levers and convenient carrying at the side. Compact, ergonomic, versatile.
- Operation
- Safety
- Frequency management
- Frequency ranges
- Dimensions & specifications
- HBC features
- Enhanced safety functions
- Feedback to the operator
Operating elements & control functions
Battery technology
Indication
Protection from unauthorized use
Activation via HBC start sequence.

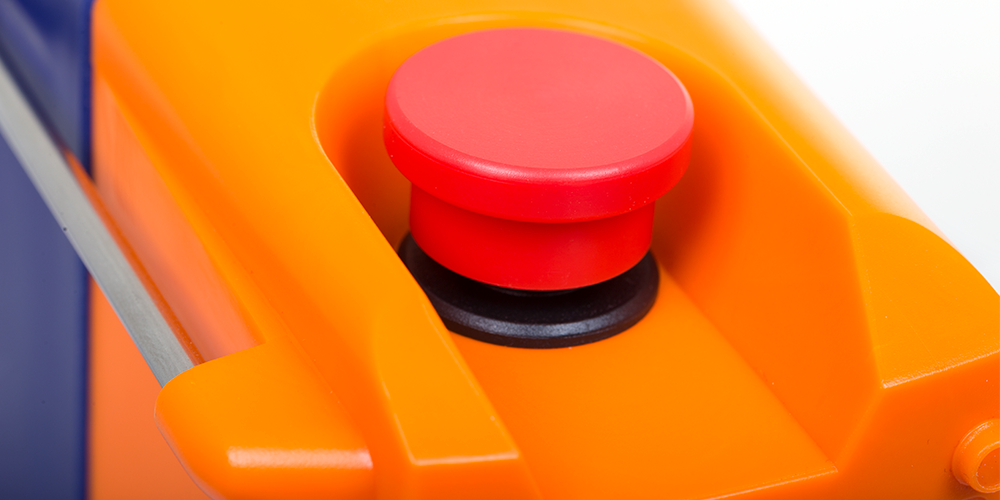

E-STOP
PL d category 3 according to EN ISO 13849-1:2015
Auto Power Off
Automatic deactivation of the transmitter after preset time without command input
(standard: 15 min)
radiomatic® AFS
= partially automatic
Adaptive Frequency Hopping
= fully automatic
DECT
= fully automatic
country-specific use:
405 - 475 MHz
865 - 870 MHz
country-independent use:
2402 - 2480 MHz
Housing material / protection class:
Plastic housing,
Protection class IP 65
Operating temperature range:
-25 °C … +70 °C
(-13 °F … +158 °F)
Weight:
approx. 630 g (1.4 lb.)
Dimensions:
142 mm x 127 mm x 81 mm (5.6" x 5.0" x 3.2")
Enhanced safety functions
Feedback to the operator
Versions
Views
