spectrum D

The high-performing radio control with large equipment and display technology.

••

Product description

The high-performing spectrum control for diverse applications. Extensive equipment including 3.5″ color TFT. Operation with HBC joysticks or linear levers.

Operation
Safety
Frequency management
Frequency ranges
Dimensions & specifications
Service concept
HBC features
Extended control concepts
Performance & availability
Enhanced safety functions
Feedback to the operator

Operating elements & control functions

Battery technology

Indication

Protection from unauthorized use

Activation via HBC start sequence or merlin^{^®} TUC.

E-STOP

PL d category 3 according to EN ISO 13849-1:2015

Auto Power Off

Automatic deactivation of the transmitter after preset time without command input
(standard: 15 min)

Functional Safety

As option, additional safe commands (PL d category 3 according to EN ISO 13849-1:2015)

radiomatic^® AFS

= partially automatic

Adaptive Frequency Hopping

= fully automatic

DECT

= fully automatic

country-independent use:
2402 - 2480 MHz

country-specific use:
1790 - 1930 MHz

country-specific use:
405 - 475 MHz
865 - 870 MHz

Housing material / protection class:

Plastic housing,
Protection class IP 65

Operating temperature range:

-20 °C … +70 °C
(-4 °F … +158 °F)

Weight:

approx. 3.0 kg

Dimensions:

358,6 x 192,5 x 195 mm

radiomatic^® iLOG

Service without downtime

Extended control concepts

« to the overview

Combined operation

Safe transport of long and bulky goods.

Pre-selection of trolley / hoist

Efficiency and safety for cranes with 2 trolleys.

Catch-release

Share cranes and machines, optimize workload, and increase safety.

Cable option

The valuable alternative for specific working conditions.

Performance & availability

« to the overview

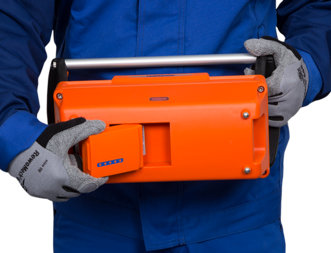

radiomatic^® CPS

Change the battery without downtime.

Bank switch for additional operating levels

= additional control functions

Enhanced safety functions

« to the overview

radiomatic^® touch-to-activate

Safe and easy release of operating elements.

radiomatic^® infrakey

Activation only with direct visual contact (line of sight).

radiomatic^® shock-off / zero-g / inclination switch

Intelligent safety features for specific emergency situations.

Enabling switch

Safe release of defined functions

merlin^® TUC (Transmitter User Card) – user identification

The easy and safe arrangement of access rights.

Micro drive

The safe speed limit.

Orthogonal drive

Always on the right track.

Front panel lighting

Safe operation even in poor lighting conditions.

Flashlight

A better view in darkness.

Shut-down on implausible control commands

Intelligent protection from unintended operation.

Feedback to the operator

« to the overview

Data, information and warnings via configurable 3.5" color TFT

Information and warnings via LED

Information and warnings via transmitter vibration

radiomatic^® photon

Safe working with camera assistance.

radiomatic^® photon 2CAM switch

The clever operator assistance with 2 video cameras.

radiomatic^® photon MCS

The mobile camera assistance.

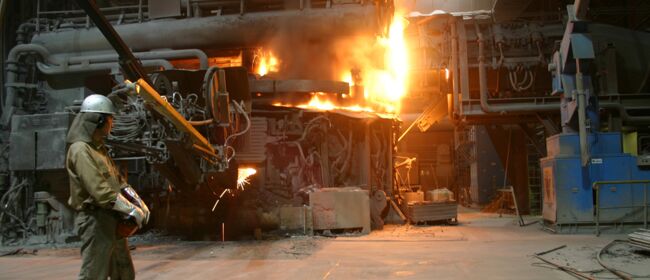

Typical applications

•••••
