Product description

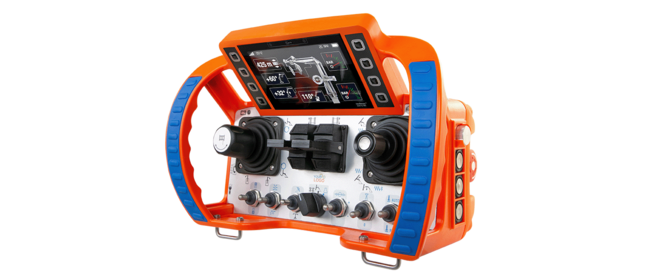

The technos C is the perfect combination of powerful display technology with the latest HBC features in an ergonomic, handy design. This versatile all-rounder can
be completely configured according to specific customer requirements and offers extended possibilities in the field of functional safety. High-performing exchangeable
Li-ion batteries provide optimum power for a wide range of applications.
- Operation
- Safety
- Frequency management
- Frequency ranges
- Dimensions & specifications
- Service concept
- HBC features
- Extended control concepts
- Performance & availability
- Enhanced safety functions
- Feedback to the operator
Operating elements & control functions
Battery technology
Indication
Protection from unauthorized use
Activation via HBC start sequence or merlin® TUC.
E-STOP
PL d category 3 according to EN ISO 13849-1:2015
Auto Power Off
Automatic deactivation of the transmitter after preset time without command input
(standard: 15 min)
Auto Movement Off
Automatic deactivation of movement functions after 5 min without command input.
Functional Safety
As option, additional safe commands (PL d category 3 according to EN ISO 13849-1:2015)
radiomatic® AFS
= partially automatic
Adaptive Frequency Hopping
= fully automatic
DECT
= fully automatic
radiomatic® AFM
= fully automatic
country-independent use:
2402 - 2480 MHz
country-specific use:
1790 - 1930 MHz
country-specific use:
405 - 475 MHz
865 - 870 MHz
902 - 928 MHz
Housing material / protection class:
Plastic (PA6 GF30)
Operating temperature range:
-20 °C … +70 °C (-4 °F … 158° F)
Weight:
approx. 2.7 kg (6.0 lb.)
Dimensions:
310 x 210 x 175 mm
(12.2 x 7.9 x 6.9 ")
radiomatic® iLOG
Service without downtime
Extended control concepts
Performance & availability
Enhanced safety functions
Feedback to the operator
